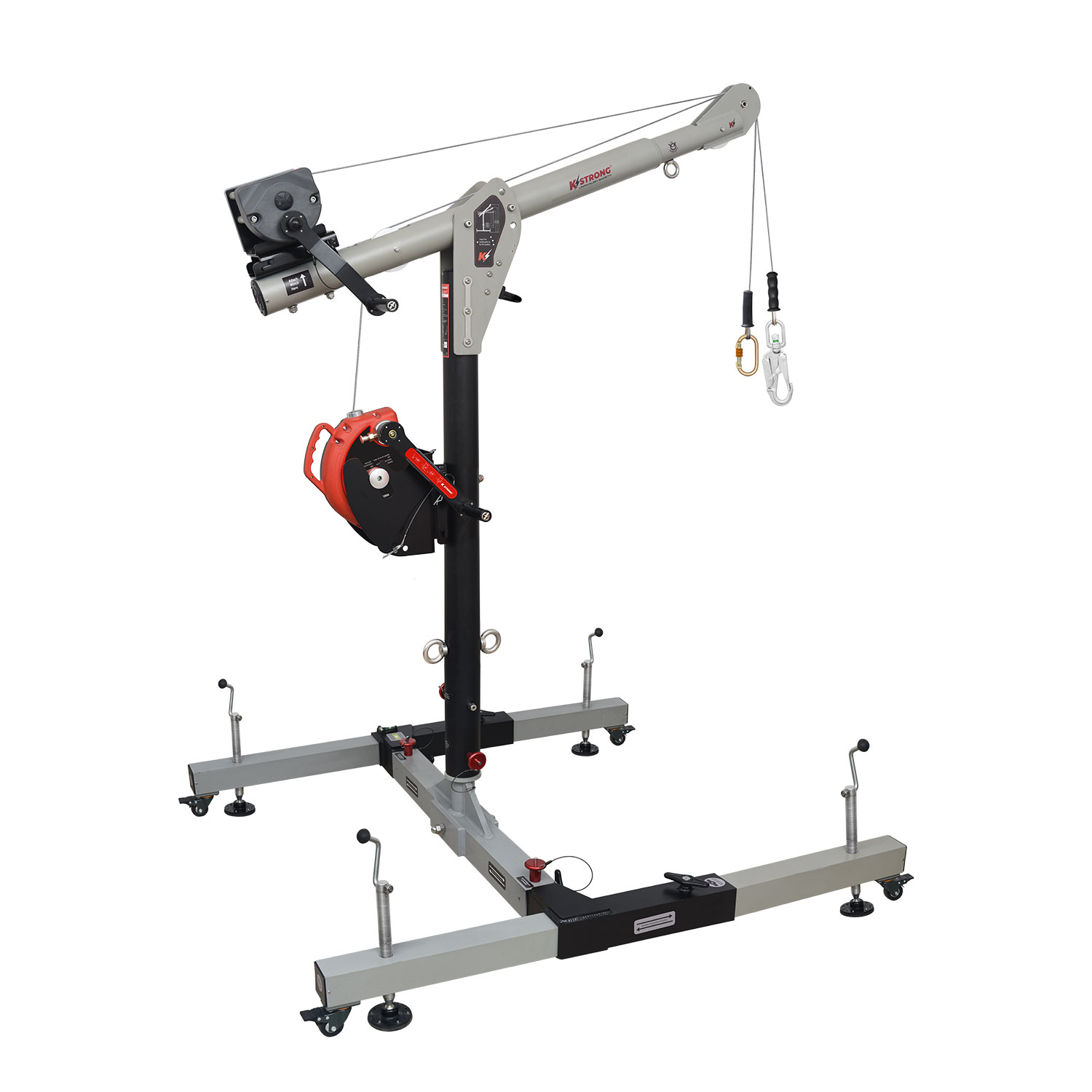

KStrongŪ Megadavit H-Base Deluxe Kit, H-Base Davit Frame Assembly, 54" Column Mast, 3' Cantilever Boom Arm with Winch Bracket, 3-Way Rescue SRL-R, 60' Winch

Includes: H-Base Frame Assembly, 54-in Column Mast, 3-ft Cantilever Boom Arm with Winch Bracket, 60 ft 3-Way Rescue/Retrieval SRL-R with Mounting Bracket, and 60 ft Material/Personnel Winch

When overhead anchorage must be dependable and rapidly deployable, the KStrong Megadavit H-Base Deluxe Kit delivers a full-spectrum solution for confined-space entry, industrial maintenance, rescue operations and vertical retrieval tasks. Built around a premium H-Base frame, adjustable mast and cantilever boom arm with winch bracket, this kit comes complete with a 60-ft 3-Way Rescue/Retrieval SRL-R and a 60-ft material/personnel winch — combining flexibility, strength and professional-grade safety into one modular system designed for real-world job-site impact.

Key Features

• Breakdown design: five major components for tool-free assembly, simplified transport and quicker deployment.
• Modular architecture: interchangeable bases, optional mast extensions and customizable boom positions.
• Cantilever boom arm with three adjustment positions to adapt reach and height to varied job-site conditions.
• Removable and foldable legs for easier setup in confined or uneven spaces and efficient storage.
• Fully swivel-capable mast column: 360° rotation with quick-release locking pins for flexible positioning.
• Multi-anchorage points built-in for rescue applications, offering greater versatility in equipment rigging.
• H-Base opening adjustable from Ø 43.3 in (1100 mm) to Ø 59.44 in (1500 mm) to accommodate various footprint requirements.
• High-strength aluminum alloy construction, ED-coated finish for job-site durability and corrosion resistance.
• System load capacity rated at 1102 lbs (500 kg) and structural system strength up to 15 kN (≈3300 lbs).
• Weight of the full kit approx. 196.7 lbs (89.2 kg) - balanced for transport yet engineered for professional rigging.
• Built to meet EN 795:2012 Type B and AS/NZS 5532:2013 standards — designed for demanding overhead anchorage applications.
• Ideal for large manholes, tanks, vertical shafts, confined-space entry and rescue, plant maintenance, and critical infrastructure tasks.
