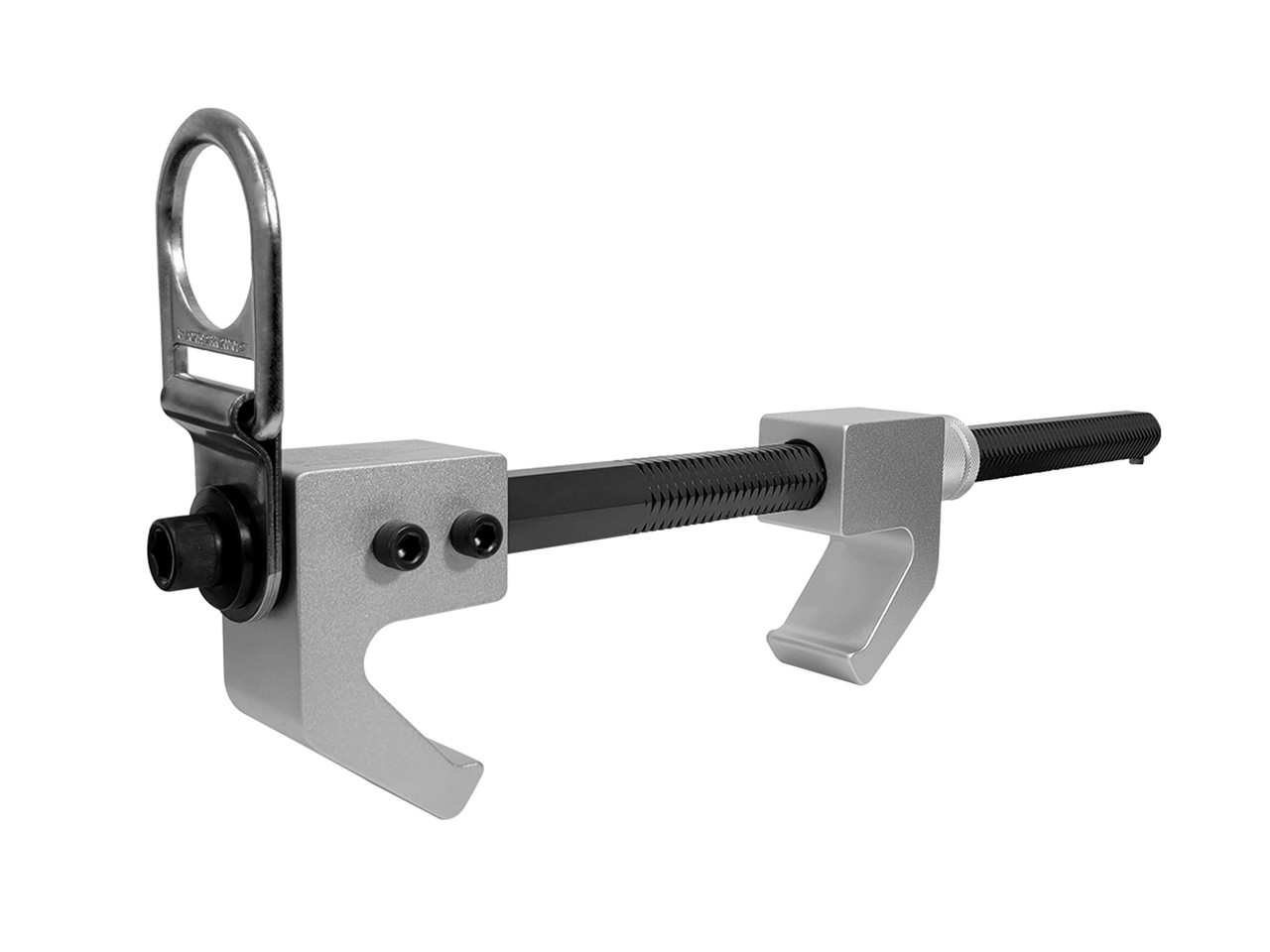

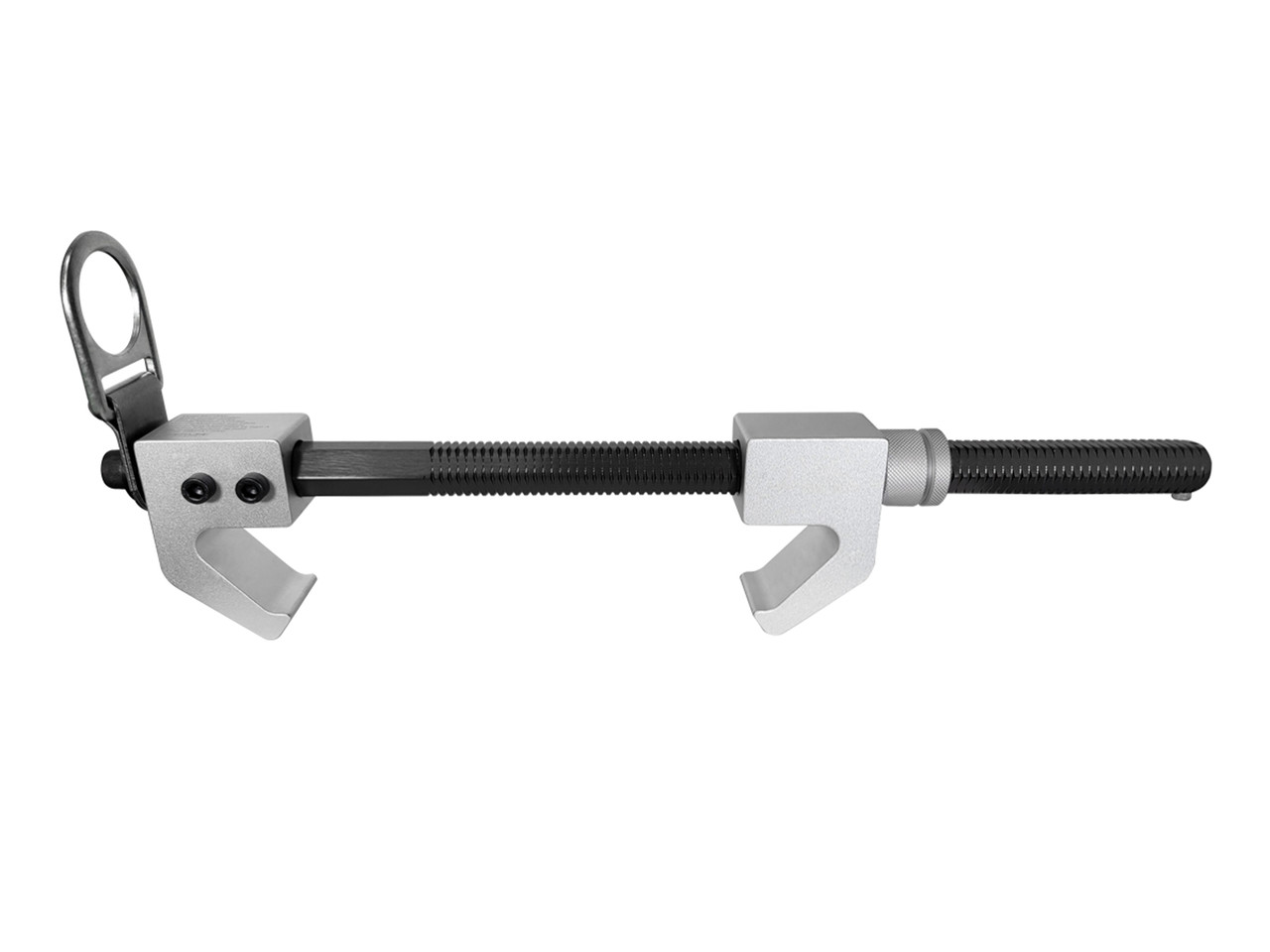

FrontlineŽ ST18AV Aluminum I-Beam Fixed Beam Anchor

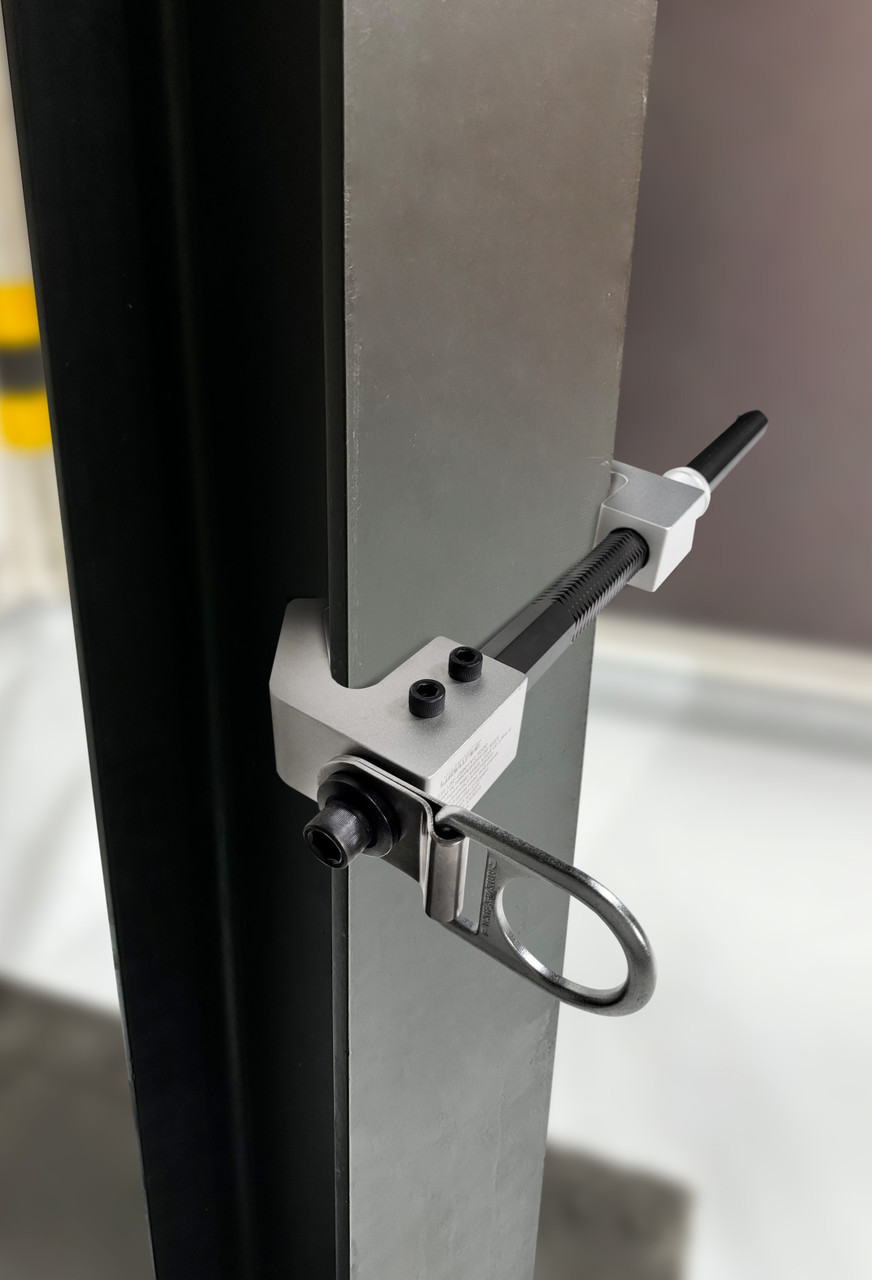

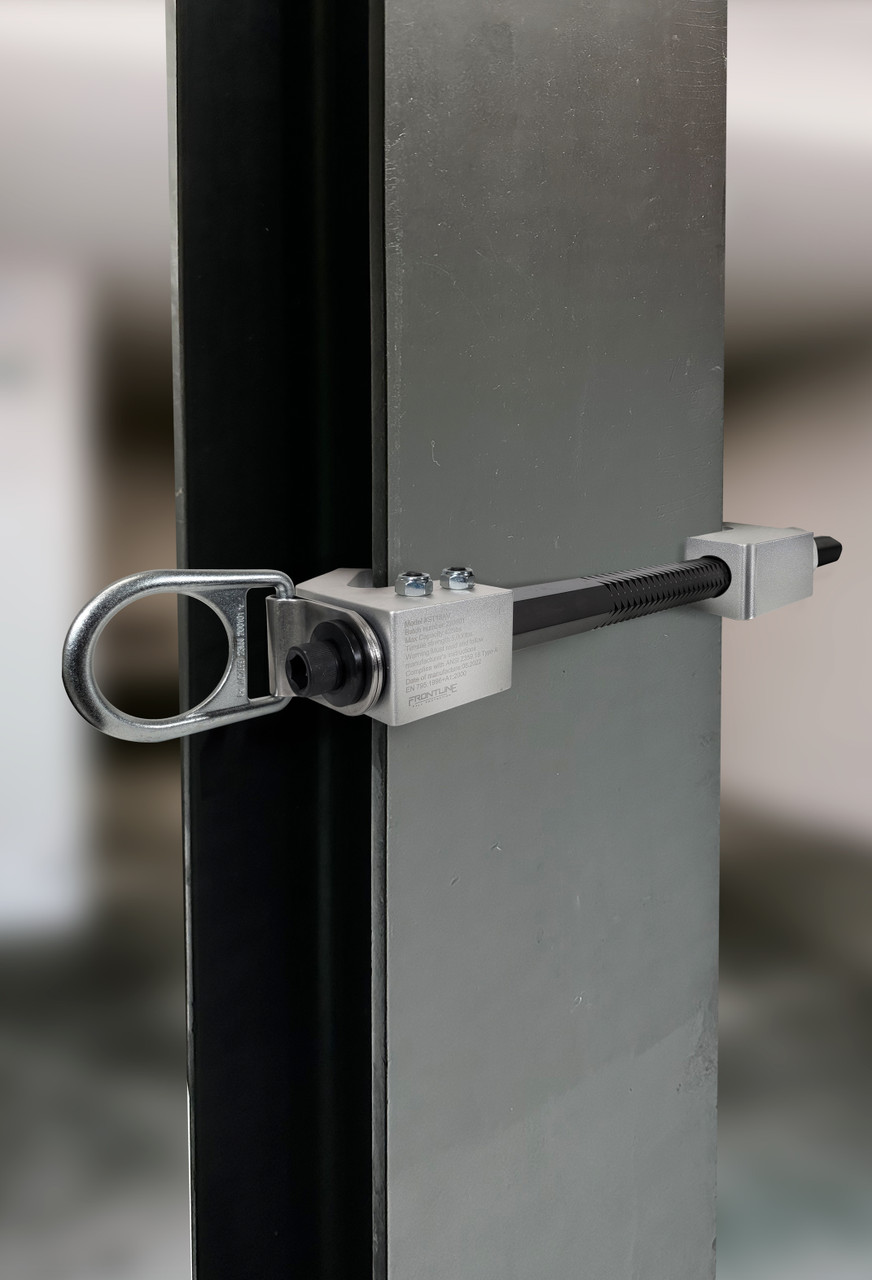

The Frontline Vertical/Horizontal Beam Anchor is a stationary I-beam attachment point that provides simple operation and is engineered to attach firmly to vertical or horizontal I-beams to establish a secure anchoring position.

This anchoring device allows for straightforward single-side adjustment to ensure proper attachment and supports individual user connection. The unit is compatible with both self-retracting lifelines and shock-absorbing lanyards, accommodating I-beams ranging from 4 inches in width up to 18 inches.

The rotating d-ring design enables smooth, unobstructed movement for the user. Built from aluminum, this I-beam anchor combines lightweight properties with robust construction, making it both portable and dependable as a steel anchoring solution.

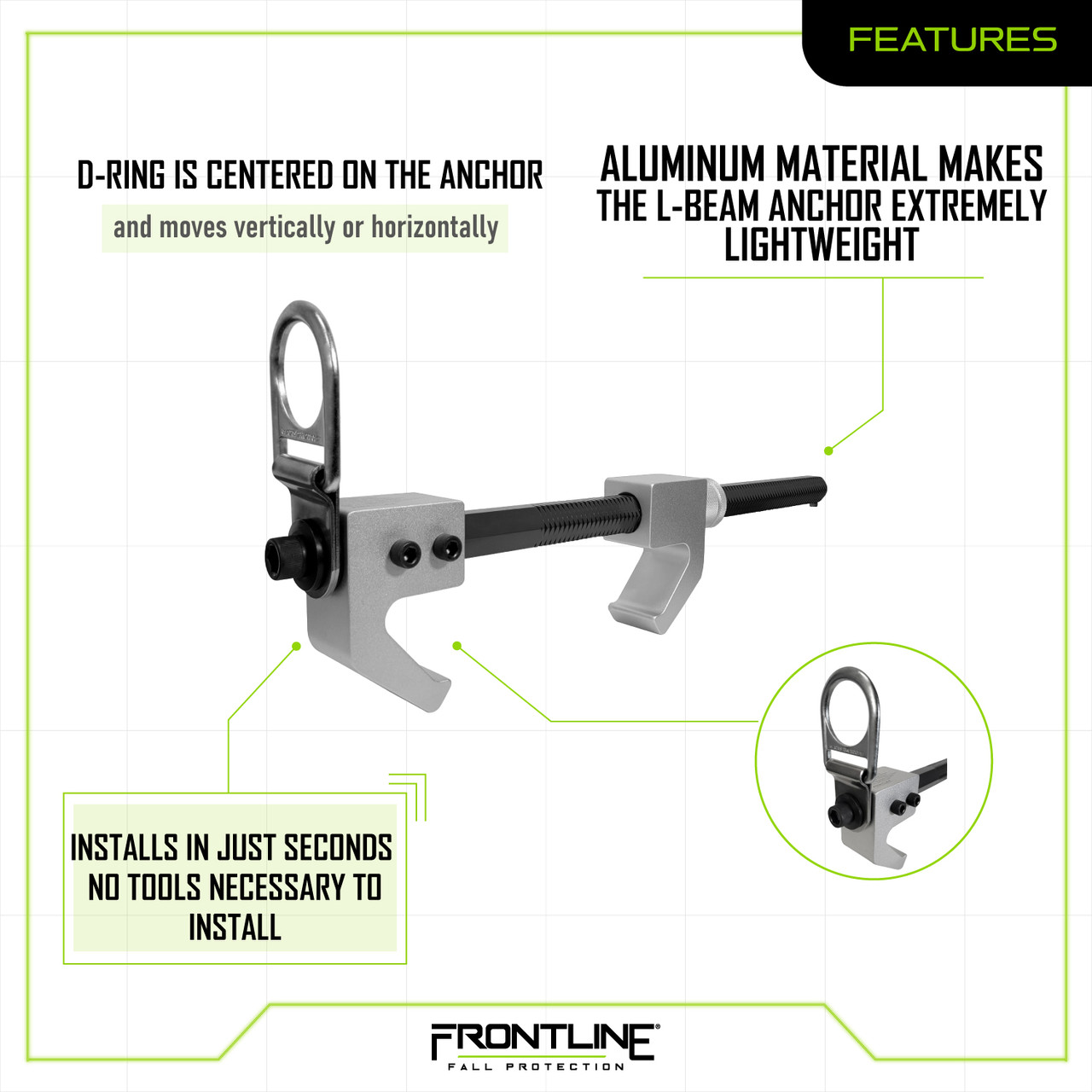

Features:

• Lightweight aluminum construction ensures easy handling
• Quick installation through simple turn-lock adjustment mechanism, requiring no additional tools

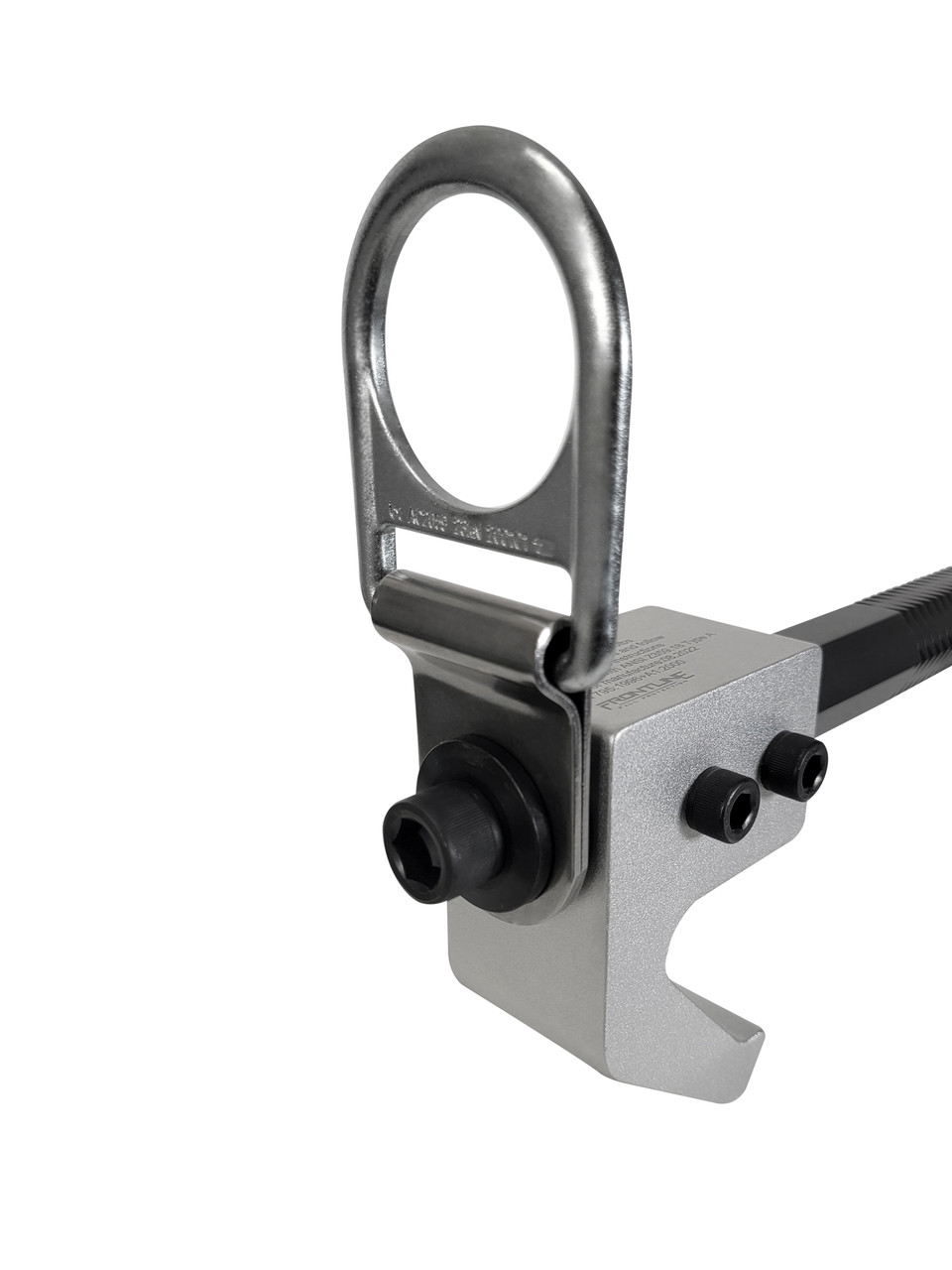

• Rotating D-ring allows unrestricted movement

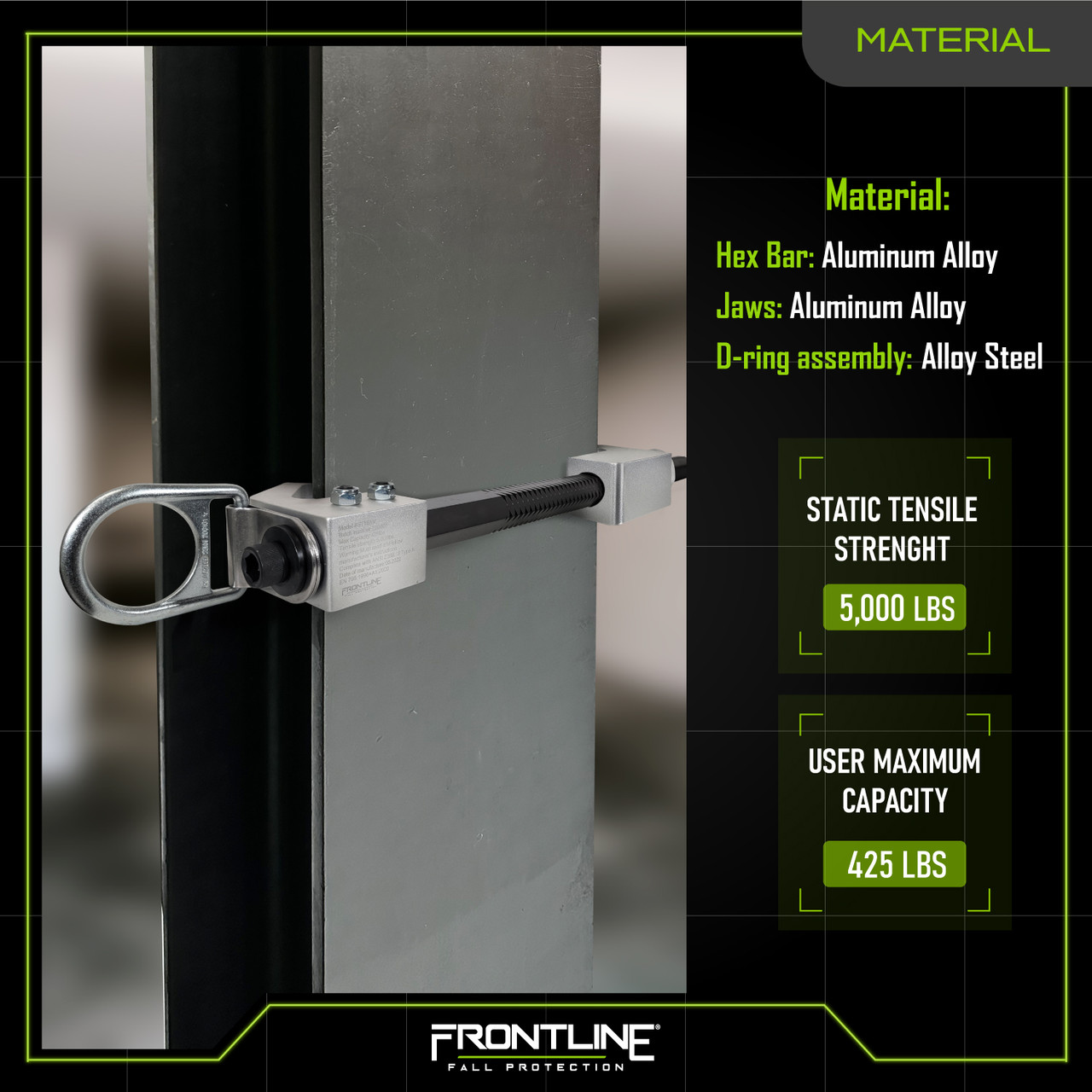

Components:

• Hex Bar: Aluminum Alloy
• Jaws: Aluminum Alloy
• D-Ring: Alloy Steel

Specs and Standards:

• Application: Horizontal/Vertical I-Beams
• Static Tensile Strength: 5,000 lbs
• User Maximum Capacity: 425 lbs
• Product Weight: 5 lbs

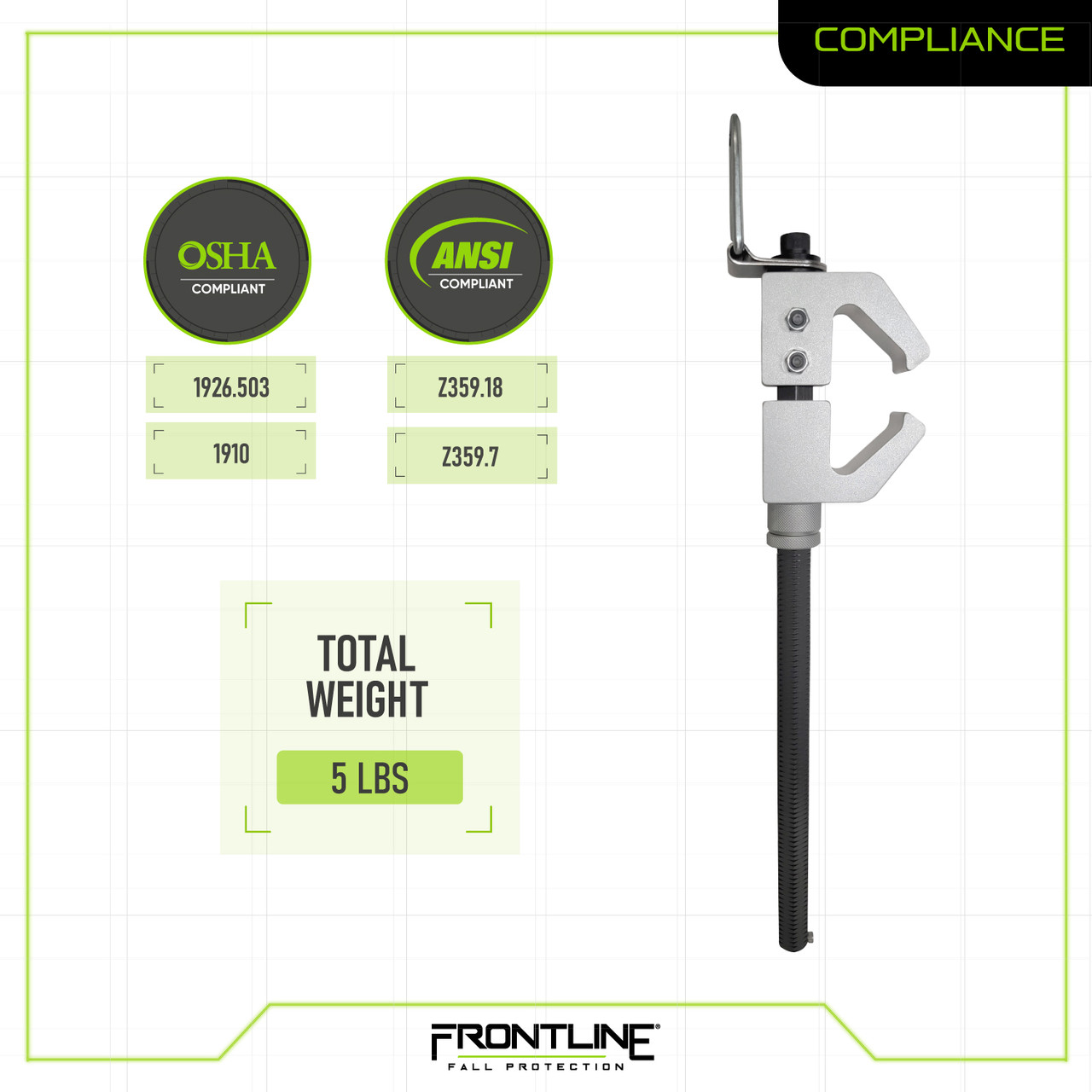

• Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503, EN 795:2012
