FrontlineŽ ST14V Vertical/Horizontal Fixed Beam Clamp for 4" - 14" Wide I-Beams

The Frontline Vertical/Horizontal Beam Anchor is a stationary I-beam connection point that provides simple operation and is engineered to attach securely to vertical or horizontal I-beams to establish a fixed anchoring position.

Designed for single-person attachment, this I-beam fastener works effectively with both self-retracting lifelines and shock-absorbing lanyards. The anchor mechanism accommodates I-beams starting at 4" in width and can expand to fit beams up to 14" wide.

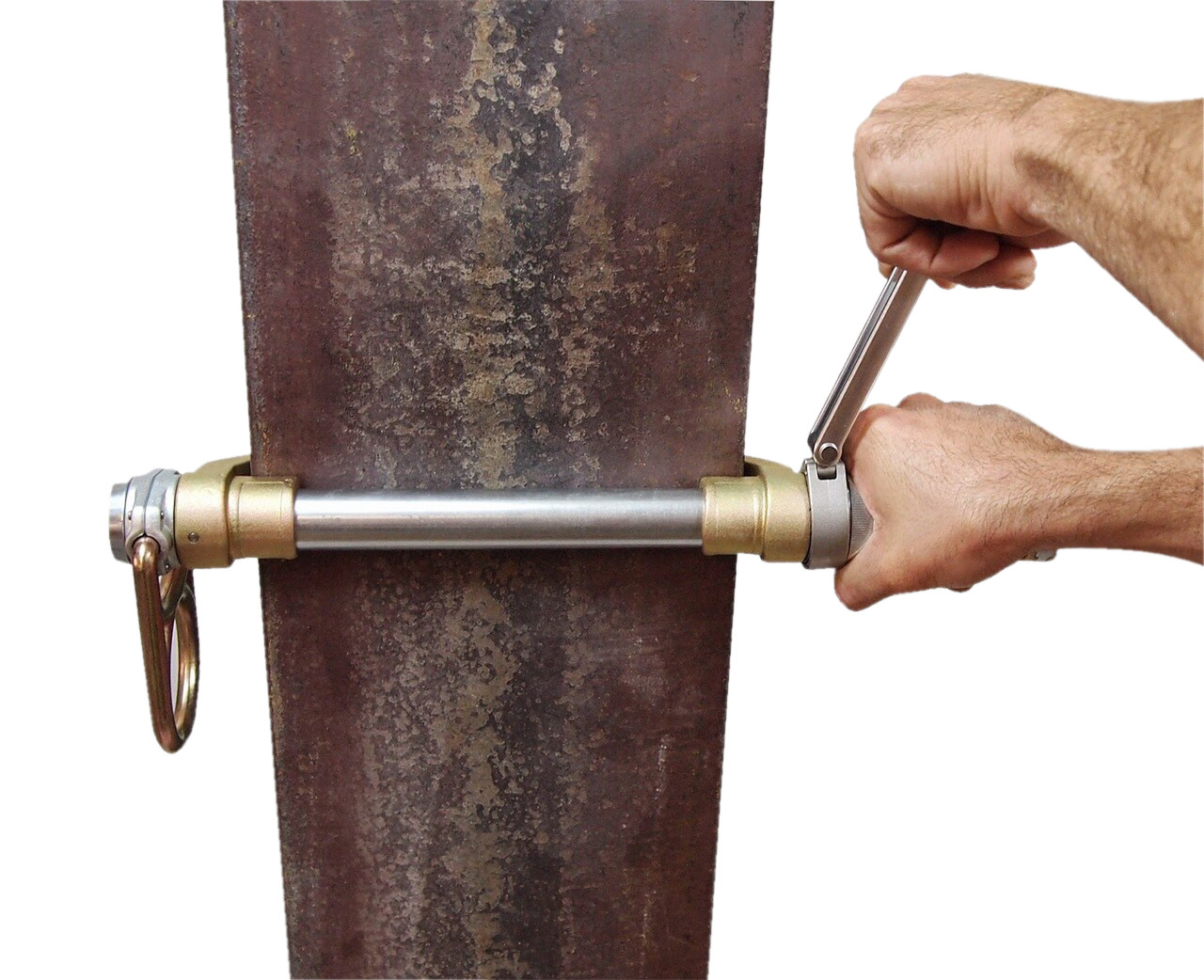

Built for durability, the compact and lightweight construction makes this beam fastener both practical and dependable as a steel anchor point, allowing for quick installation without requiring any tools.

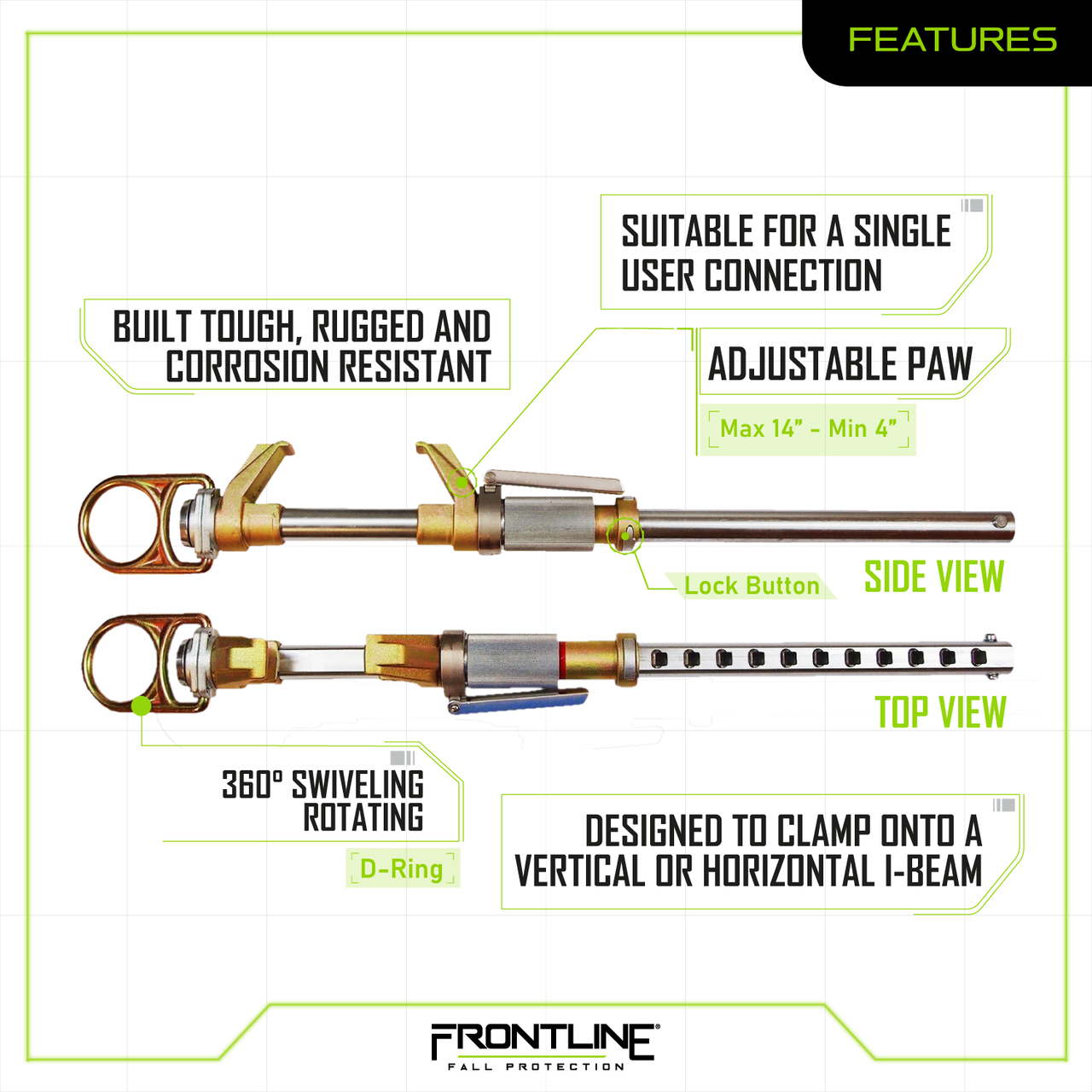

Features:

• Constructed with robust materials for maximum durability and rust resistance
• Versatile design enables secure attachment to steel beams or columns vertically or horizontally
• Beam Flange Width Range: 4″ - 14″
• Beam Flange Thickness: 0.25″ - 1.25″

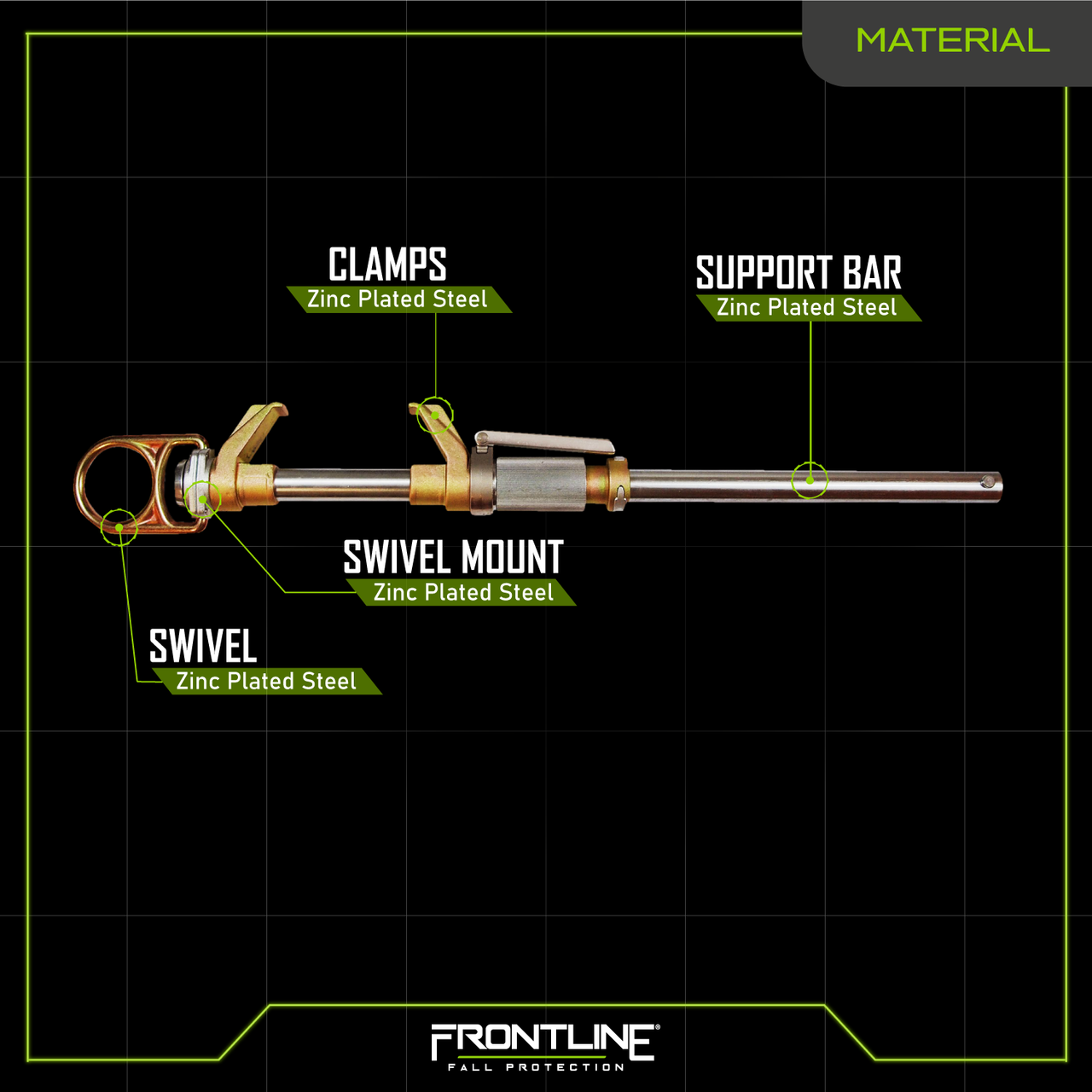

Components:

• Zinc Plated Steel Swivel D-Ring
• Zinc Plated Steel Support Bar
• Zinc Plated Steel Flange Hooks
• Stainless Steel D-Ring Mount

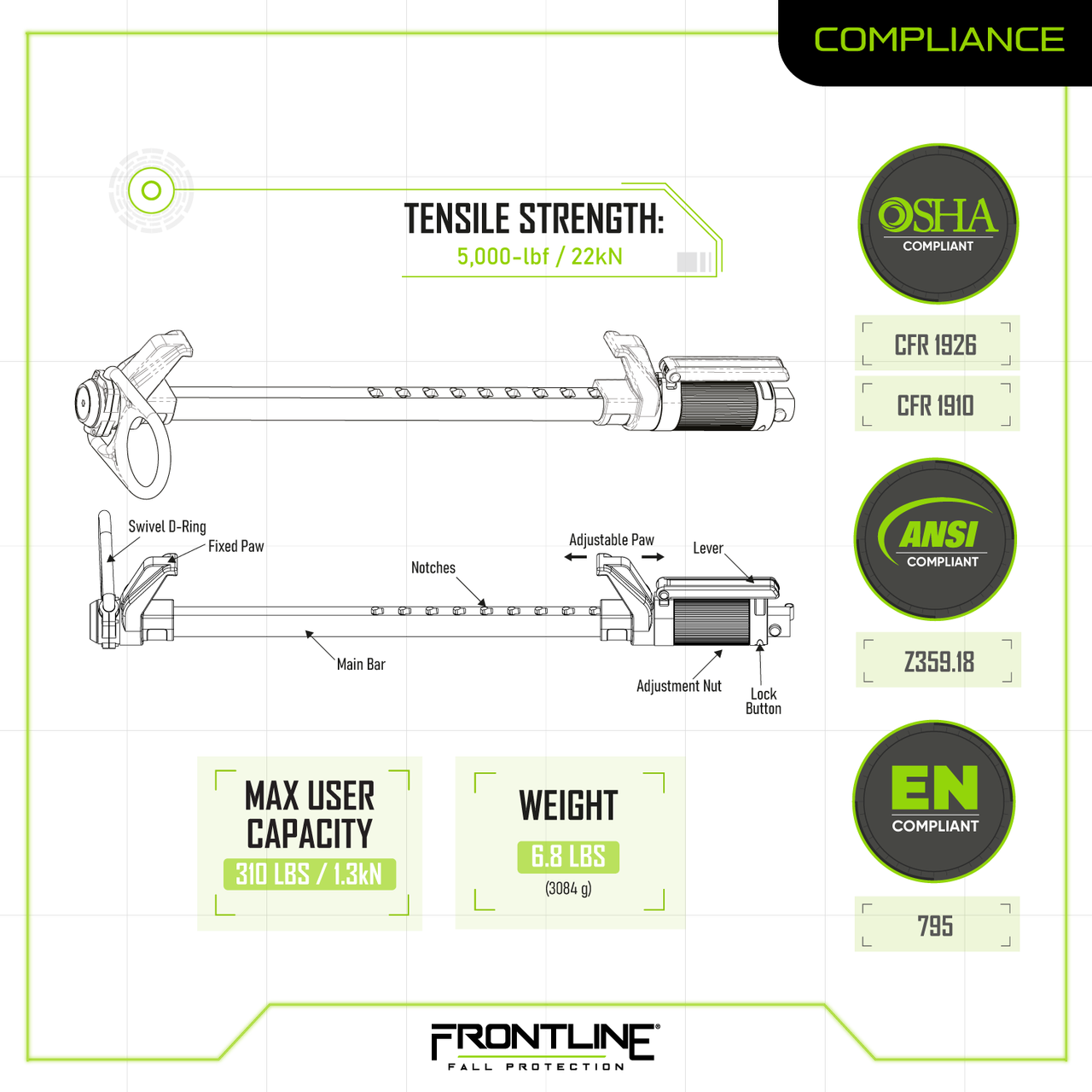

Specs and Standards:

• Static Tensile Strength: 5,000-lbf/22kN
• User Maximum Capacity: 310 lbs
• Product Weight: 6.8 lbs
• Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503, EN 795:2012
